Introduction

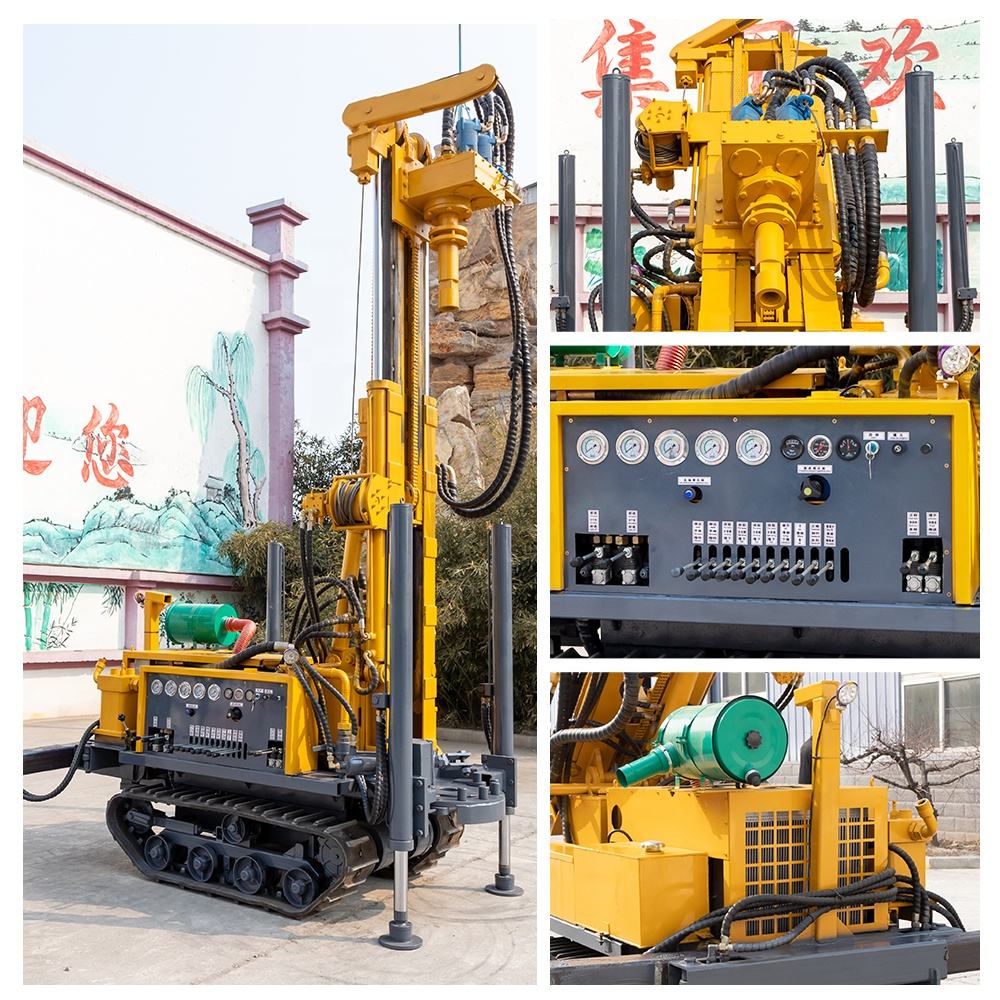

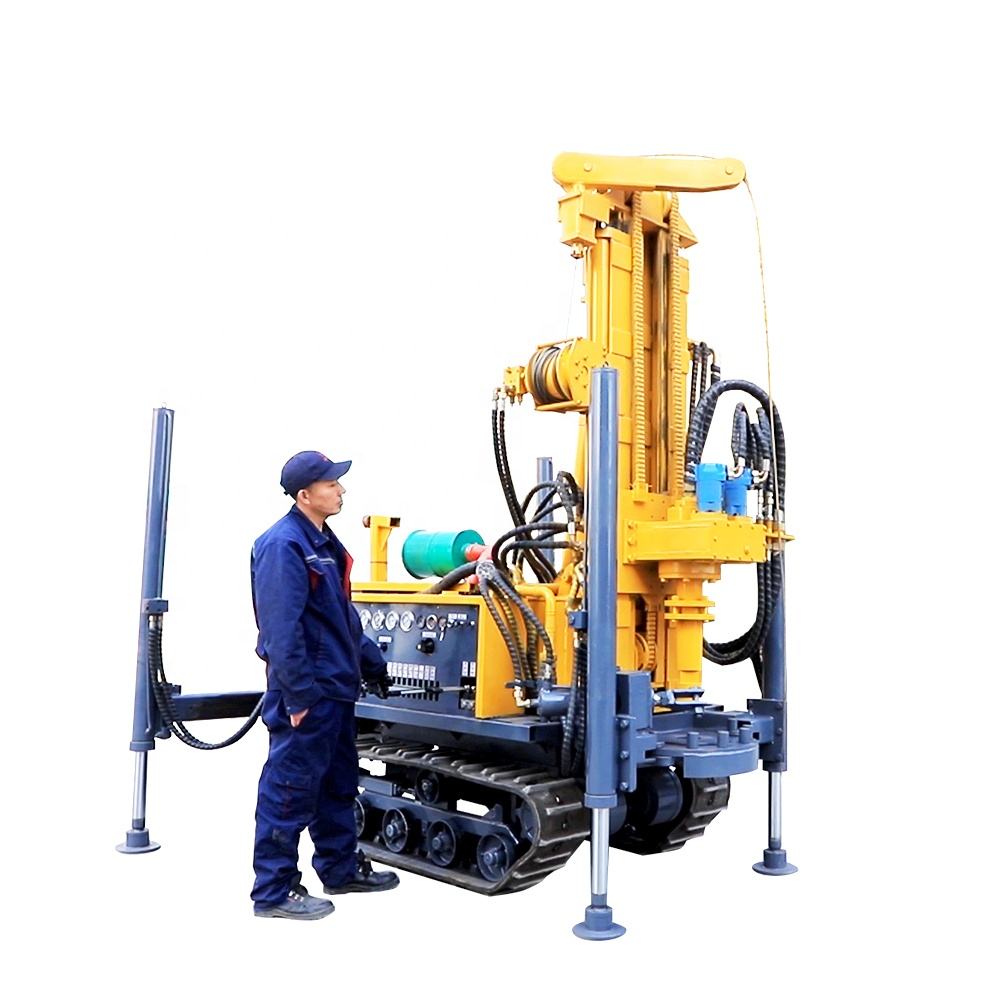

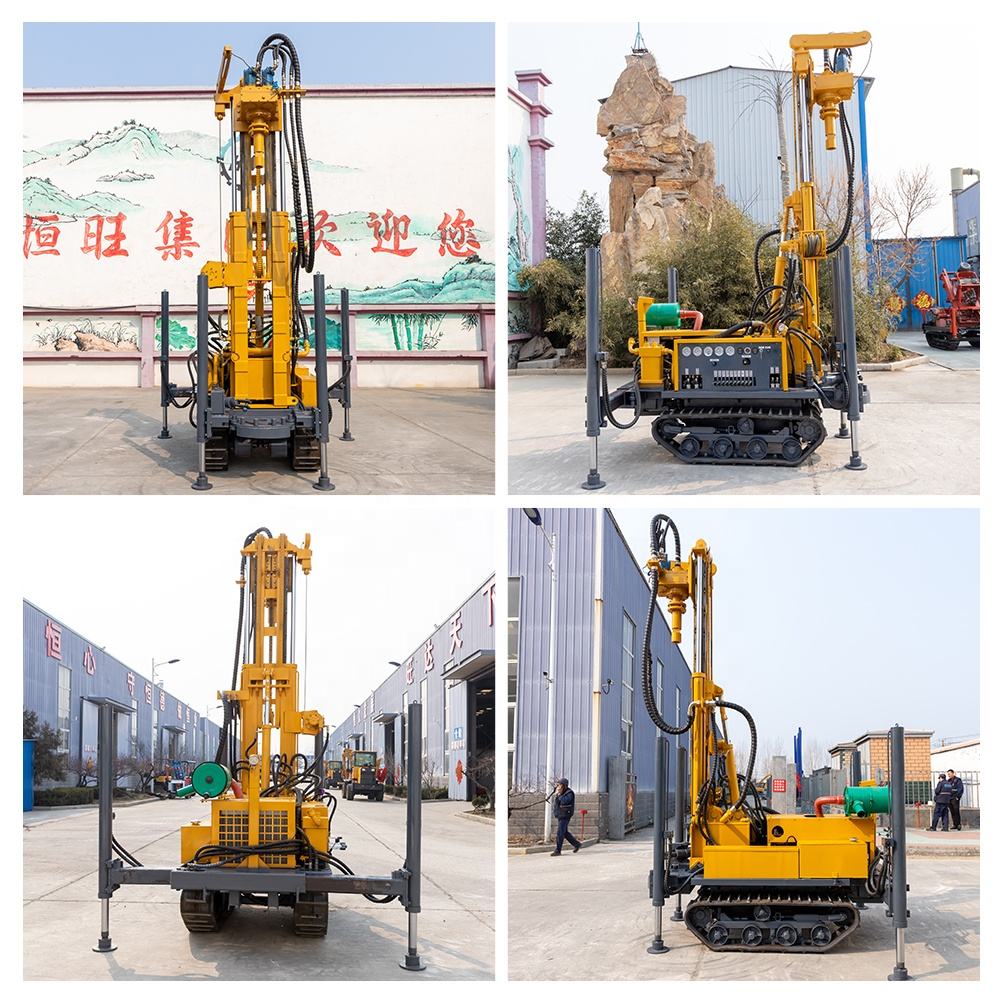

Introducing the Hengwang 160m Top Hammer Drilling Rig – a robust rotary drilling rig designed for water well applications. Engineered in Shandong, China, this diesel-powered machine is built for efficiency and durability while delivering competitive performance at an attractive price point.
Specifications
- Type: Rotary Drilling Rig
- Power Type: Diesel
- Use: Water Well Drilling
- Voltage: 380V
- Drilling Diameter Options:
- Primary options: 50 mm, 60 mm, 75 mm, 100 mm, 200 mm, 300 mm
- Additional drilling diameter range provided: 138–203 mm
- Drilling Depth: Up to 160 m (Note: Although listed with a max. depth of 200 m in some references, the standard operational drilling depth is 160 m)
- Place of Origin: Shandong, China
- Weight: 2600 kg
- Dimensions (L×W×H): 2300 × 1200 × 1900 mm
- Warranty: 1 Year
Core Components & Mechanical Details
- Key Components: Motor, pump, and diesel engine

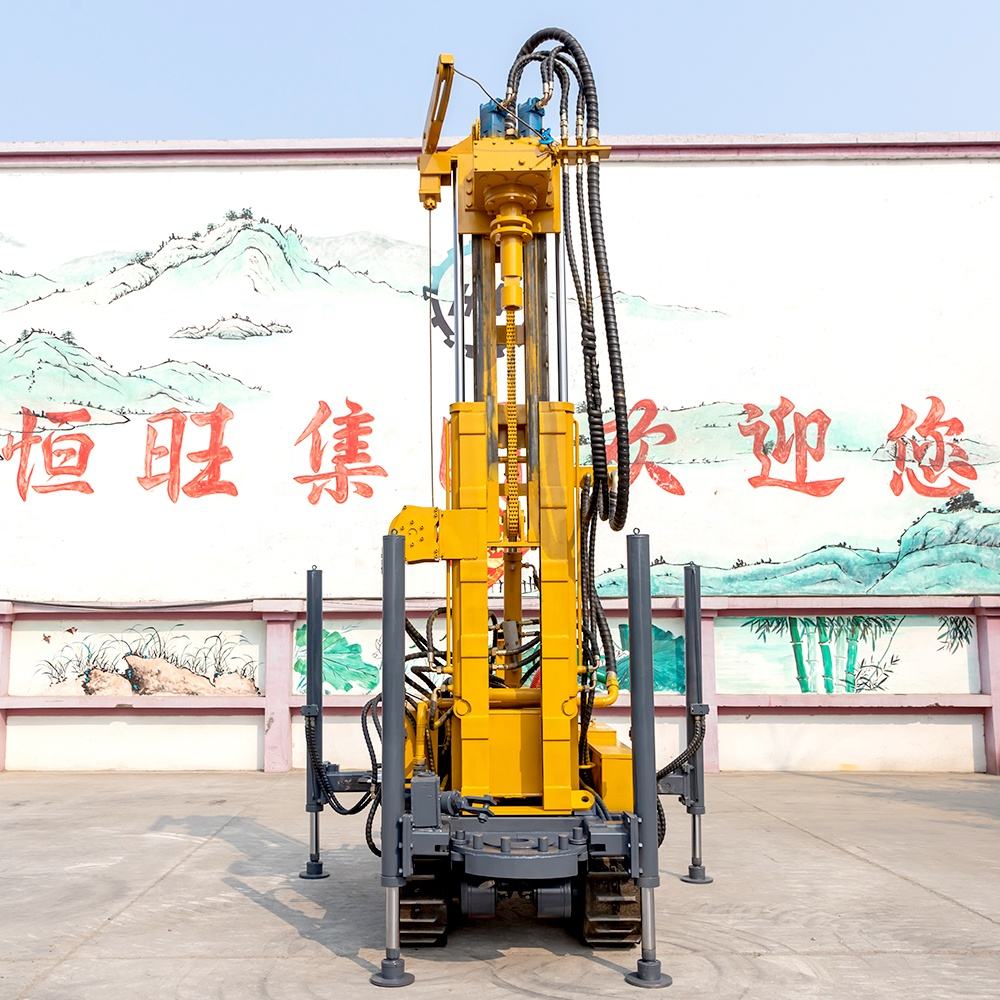

- Drill Mast: 2 m

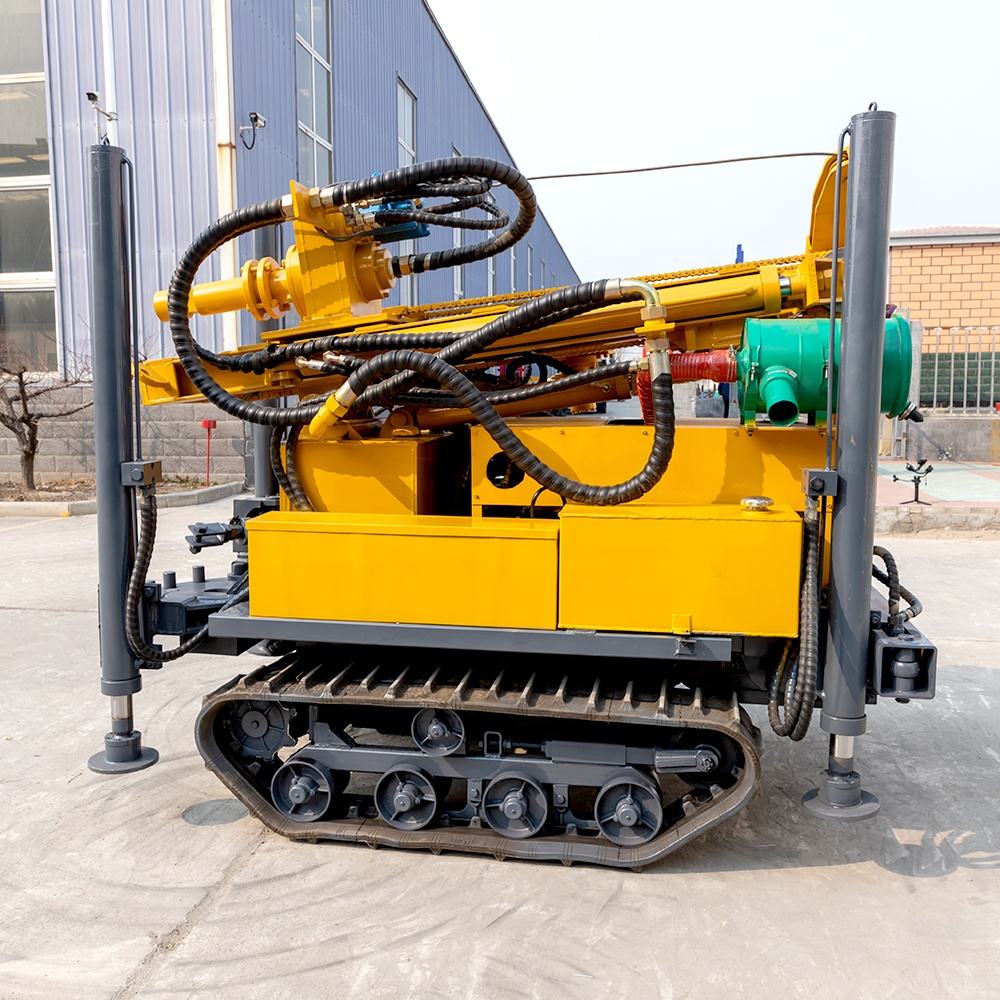

- Chassis: Rubber track for stable mobility
- Drilling Mechanics:
- One-time push length: 2 m
- Climbing ability: 30°
- Drill rod diameter options: 76 mm / 89 mm
- Drill rod length options: 1 m, 1.5 m, or 2 m
- Lifting force: 12 tonnes
- Rotary speed: 50–110 rpm
Key Features
- Reliable Performance: Powered by a robust diesel engine with supporting hydraulic motor and pump systems, the rig delivers consistent drilling power and precise operation.
- Versatile Drilling Options: With multiple drilling diameter options available, the rig adapts to various water well requirements and geological conditions.
- Enhanced Mobility & Stability: The rubber track chassis and 2 m drill mast feature ensure stable operation even on uneven terrain, with a climbing ability of up to 30°.
- Quality Assurance: Comes with a machinery test report and video outgoing inspection, underlining the high standards maintained by Hengwang.
- Competitive Price: Engineered to offer robust performance and durability at a competitive price point, making it an optimal investment for water well drilling projects.
Applications
- Water Well Drilling: Ideal for drilling water wells in agricultural, municipal, and rural settings.
- Geological and Construction Projects: Suitable for applications that require efficient, high-speed drilling through various strata in light construction or exploration projects.
Conclusion
The Hengwang 160m Top Hammer Drilling Rig is engineered to meet the demanding requirements of modern water well drilling. With its customizable drilling diameter options, robust diesel power, and state-of-the-art mechanical components, it stands as a reliable choice for operators seeking a blend of performance, durability, and cost-effectiveness. Comprehensive support through machinery test reports and video inspections further underscores its reliability, making it a noteworthy asset in the water well drilling market.
