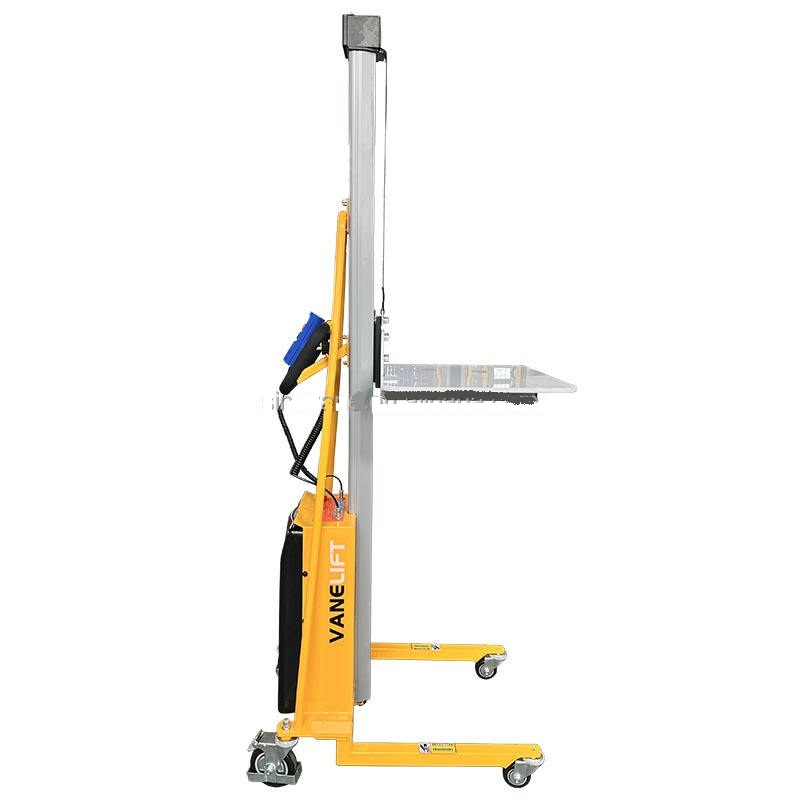

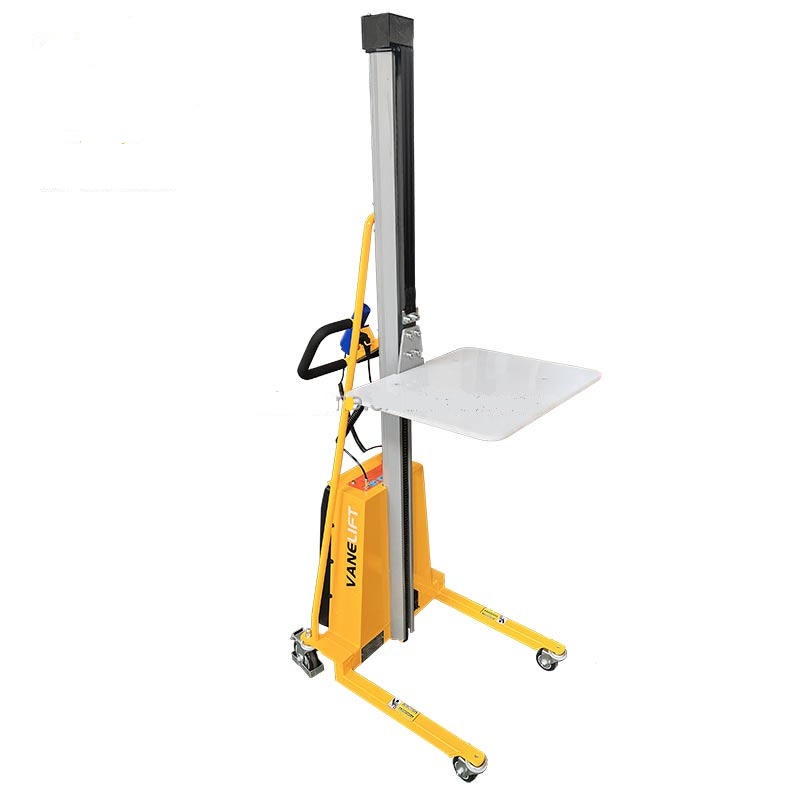

Mini Electric Platform Lift 1.5m-1.7m-1.8m-Height & 100-150-200Kg cm Small Cargo Battery Stacker Automatic Lifting
The Mini Electric Platform Lift (1.5m) is a compact, electrically powered lifting device designed for efficient vertical movement in various settings.
Specifications
| Feature | Details |
|---|---|
| Lift Mechanism | Electric Scissor Lift |
| Lift Height | Up to 1.5 meters |
| Load Capacity | 300 kg |
| Platform Dimensions | 1.5 meters (L) x 0.8 meters (W) |
| Weight | Approximately 300 kg |
| Power Supply | AC 220V, 50Hz |
| Safety Features | Emergency stop button, non-slip platform |
| Warranty | 1 year |
Key Features
- Electric Operation: Provides smooth and efficient lifting without manual effort.
- Compact Design: Ideal for confined spaces and easy maneuverability.
- High Load Capacity: Supports up to 300 kg, accommodating tools and personnel.
- Safety Features: Equipped with an emergency stop button and non-slip platform to ensure user safety.
- User-Friendly Controls: Simple interface for easy operation.
Applications
- Construction Sites: Facilitates tasks such as painting, maintenance, and installation at elevated heights.
- Warehouses: Useful for accessing high storage areas and performing inventory management.
- Retail Environments: Assists in setting up displays and performing maintenance in large stores.
- Event Setup: Facilitates the installation of lighting and decorations in venues.
Summary
The Mini Electric Platform Lift (1.5m) offers a reliable and efficient solution for vertical lifting needs across various industries. Its compact design, high load capacity, and safety features make it a valuable asset for tasks requiring elevated access.
Technical Data
Semi-Electric Stacker / Work Positioner
|
Model
|
E100
|
E150
|
E200
|
E250
|
E300
|
|
Load Capacity (kg)
|
100
|
150
|
200
|
250
|
300
|
|
Max. Height (mm)
|
1700/2000
|
1500/1800
|
1500/1800
|
1500/1800
|
1500/1800
|
|
Min. Height (mm)
|
130
|
130
|
130
|
130
|
130
|
|
Leg Height (mm)
|
80/123
|
80/123
|
80/123
|
80/123
|
80/123
|
|
Platform Size (mm)
|
475×605
|
475×605
|
475×605
|
475×605
|
475×605
|
|
Load Wheels (mm)
|
φ50/φ75
|
φ50/φ75
|
φ50/φ75
|
φ50/φ75
|
φ50/φ75
|
|
Steering Wheels (mm)
|
φ125
|
φ125
|
φ125
|
φ125
|
φ125
|
|
Battery (V/Ah)
|
2x(12/12)
|
2x(12/12)
|
2x(12/20)
|
2x(12/20)
|
2x(12/20)
|
|
Overall Size (mm)
|
765x605x2010(2310)
|
765x605x1810(2110)
|
803x605x1810(2110)
|
803x605x1810(2110)
|
870x605x1920(2220)
|
