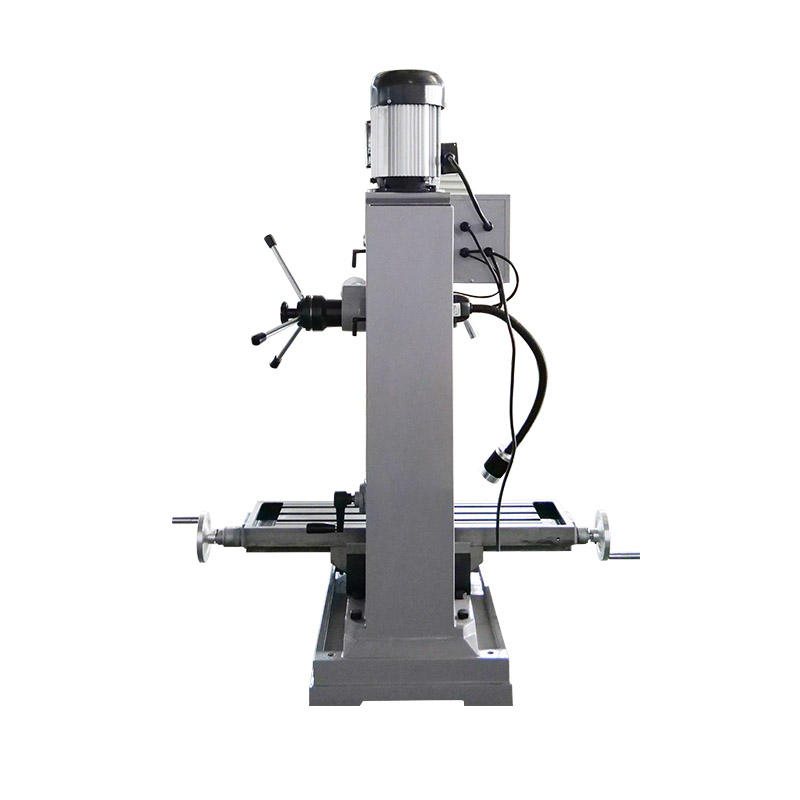

ZAY7045FG 3 in 1 Lathe Mill and Drill Machine with Dro Mini Milling Drill Machine
Briefing
The product is a ZAY7045FG 3-in-1 Lathe Mill Drill Machine. This machine is designed for efficient and precise milling, drilling, and lathe operations using a combination of functionalities.
Key Specifications
- Type: 3-in-1 Lathe Mill Drill Machine
- Material: Steel
- Operation: Manual
- Power: 1.5 kW
- Voltage: 220V
- Max Drilling Capacity: 45mm
- Max Tapping Capacity: 20mm
- Max Face Milling Capacity: 80mm
- Max End Milling Capacity: 32mm
- Table Size: 800 x 240 mm
- Travel: X-axis: 500 mm, Y-axis: 175 mm, Z-axis: 400 mm
- Spindle Speed Range: 100-530 RPM, 530-2800 RPM
- Weight: Approximately 325 kg
- Dimensions: 770 x 880 x 1160 mm
- Control: Manual
Applications
- Metalworking: Ideal for milling, drilling, and lathe operations in various metalworking projects.
- Machining: Suitable for use in machining and manufacturing plants.
- Versatile Use: Can be used in various industries, including construction, retail, and machinery repair shops.
Summary
This 3-in-1 lathe mill drill machine offers a powerful and efficient solution for milling, drilling, and lathe operations. It is designed for manual operation, making it suitable for use in various metalworking and machining applications. The machine is durable and provides reliable performance, ensuring that metal is milled, drilled, and turned accurately and efficiently.
1. Step speed changed cyclically and spindle auto-feeding and cyclic change of feeding speed;
2. Milling, drilling, tapping, boring, reaming;

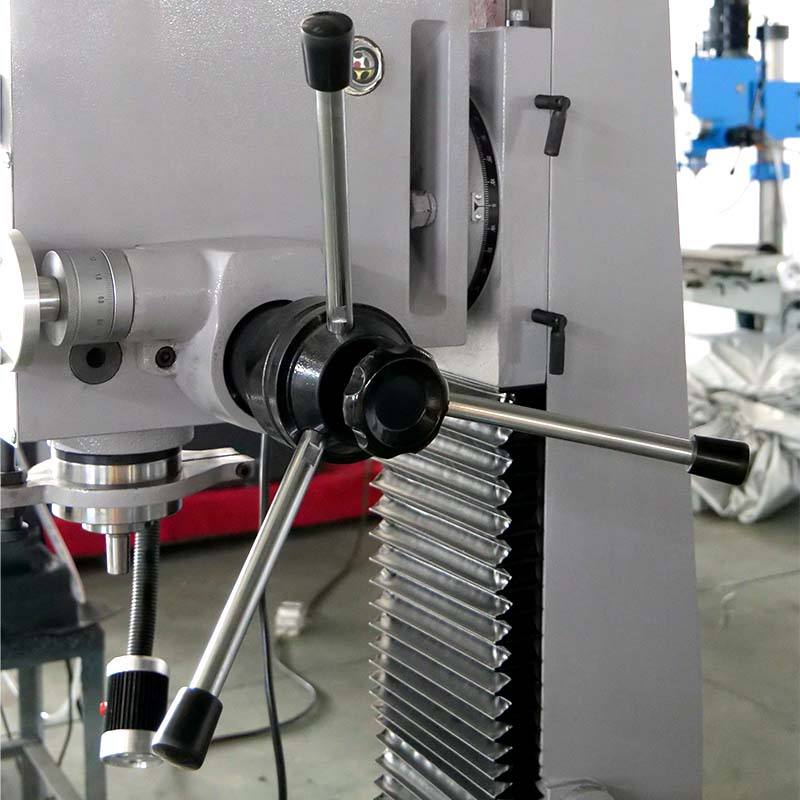

3. Head swivels ±90°verticaly;

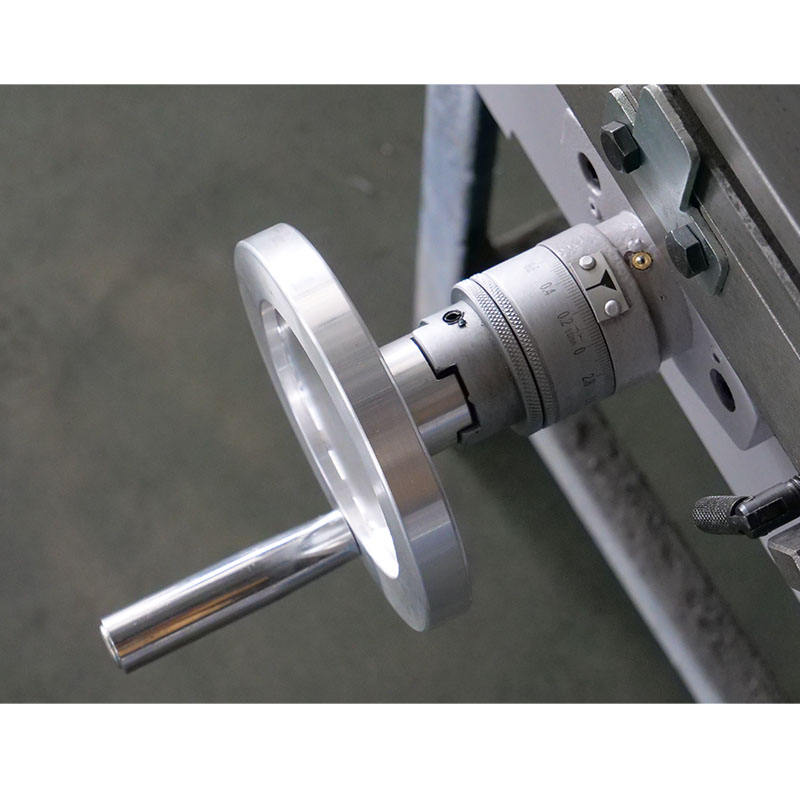

4. Spindle micro feed precision;
5. Adjustable gibs on table precision;
6. Accurate position, strong rigidity, powerful cutting;

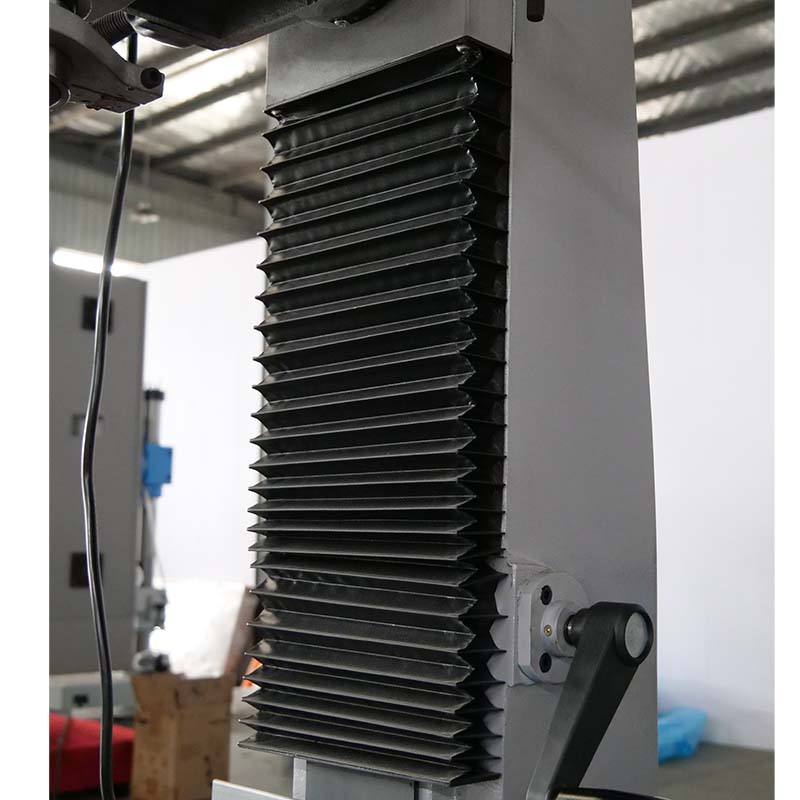

7. Gear-driven type and square column.
|
Specification
|
ZAY7045FG
|
|
Max. drilling capacity
|
45mm
|
|
Max. tapping capacity
|
20mm
|
|
Max. face milling capacity
|
80mm
|
|
Max. end milling capacity
|
32mm
|
|
Max. distance from spindle nose to table
|
450mm
|
|
Min. distance from spindle axis to column
|
260mm
|
|
Spindle travel
|
130mm
|
|
Spindle taper
|
MT3 MT4 or R8
|
|
Step of spindle speed
|
6 steps
|
|
Range of spindle speed 50HZ
|
80-1250 rpm
|
|
Range of spindle speed 60HZ
|
95-1500 rpm
|
|
Auto-feeding steps of spindle
|
/
|
|
Auto-feeding amount of spindle
|
/
|
|
Swivel angle of headstock(vertical)
|
±45°
|
|

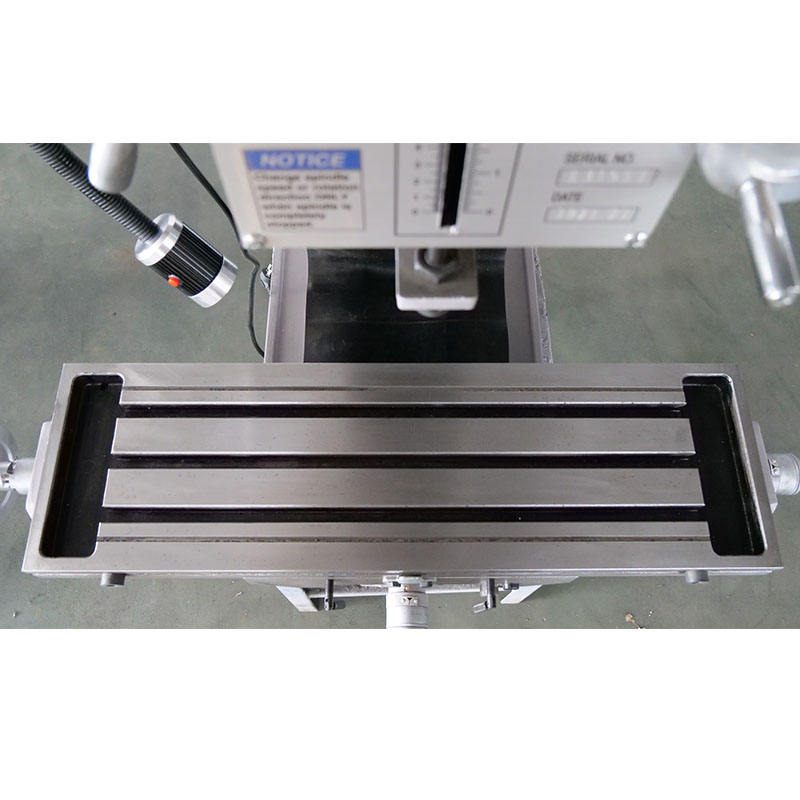

Table size
|
800×240mm
|
|
Forward and backward travel of table
|
175mm
|
|
Left and right travel of table
|
500mm
|
|
Motor power
|
1.5kw(2HP)
|
|
N.w/G.w
|
320/370kg
|
|
Packing size(LxWxH)
|
770×880×1160mm
|
|
Loading amount/20″ container
|
36pcs
|
