Woodworking Cleaning Vacuum Dust Collectors Machine Dust Cleaner for Woodworking Machinery
Briefing
The product is a Woodworking Cleaning Vacuum Dust Collectors Machine. This machine is designed for efficient and precise collection of dust and debris in woodworking environments.
Key Specifications
- Type: Dust Collectors Machine
- Material: Steel
- Operation: Automatic
- Power: Varies based on model
- Voltage: 220V/380V
- Airflow: Varies based on model
- Filtration Efficiency: 99%
- Weight: Varies based on model
- Dimensions: Customizable
- Control: Electric
Applications
- Woodworking: Ideal for collecting dust and debris in woodworking projects.
- Sawmills: Suitable for use in sawmills for high-efficiency dust collection.
- Customizable: Can be customized for different sizes and specifications.
Summary
This woodworking cleaning vacuum dust collectors machine offers a powerful and efficient solution for collecting dust and debris. It is designed for automatic operation with a high-precision control system, making it suitable for use in various woodworking and sawmill applications. The machine is customizable in terms of size and specifications, providing flexibility for different projects. Its durable construction and advanced control features ensure reliable performance.
|
Model
|
MF9022
|
MF9030
|
MF9040
|
MF9055
|
MF9075
|
|
Motor Power
|
2.2KW
|
3KW
|
4KW
|
5.5KW
|
7.5KW
|
|
Air volume
|
2150m³/h
|
3150m³/h
|
4450m³/h
|
6000m³/h
|
7000m³/h
|
|
Wind speed
|
35-40m/sec
|
35-40m/sec
|
40-45m/sec
|
40-45m/sec
|
40-45
|
|
Air inlet size
|
100*3
|
100*3
|
100*4
|
100*6
|
100*6
|
|
Bag size
|
480mm
|
480mm
|
630mm
|
630mm
|
630mm
|
|
Package Size
|
980*550*1680
|
1200*670*700
|
1470*700*720
|
1470*700*720
|
1470*700*720
|
|
Dimensions
|
980*550*1680
|
1200*670*1950
|
1470*700*2200
|
1470*700*2200
|
1470*700*2200
|
|
Net weight/gross weight
|
38/43
|
48/55
|
60/65
|
70/75
|
75/80
|
working principle。
When the dust-laden gas enters from the inlet of the mobile bag dust collector, it enters each unit chamber through the guide pipe. Under the action of the guide device, the large particles of dust are separated and fall directly into the ash hopper, and the remaining dust enters the filter bags in the filter area of each chamber evenly with the air flow. When the dust-laden gas passes through the filter bags, the dust is adsorbed on the filter bags, and the purified gas is discharged from the filter bags.

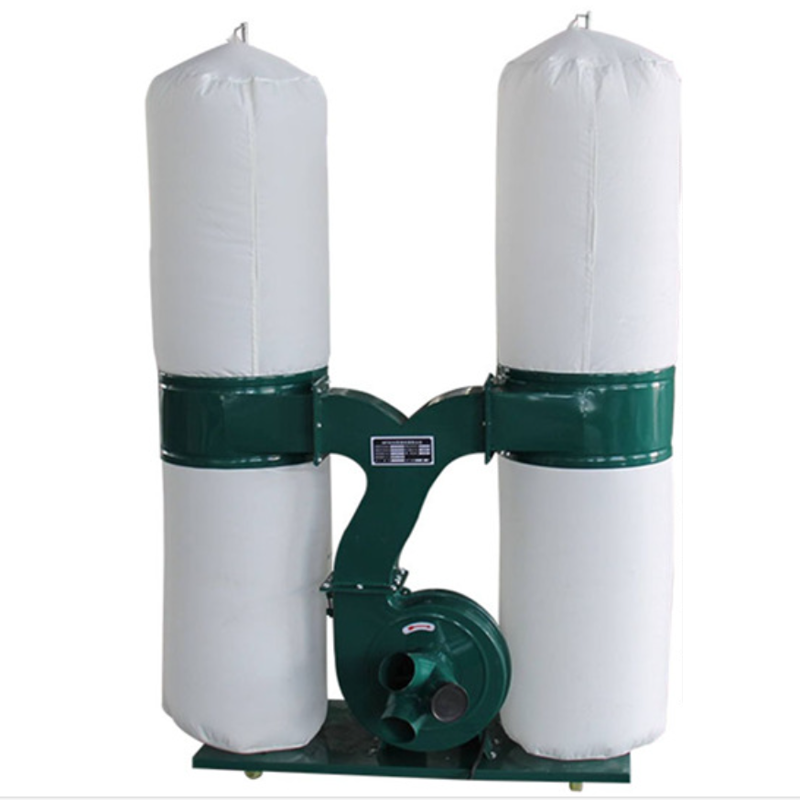

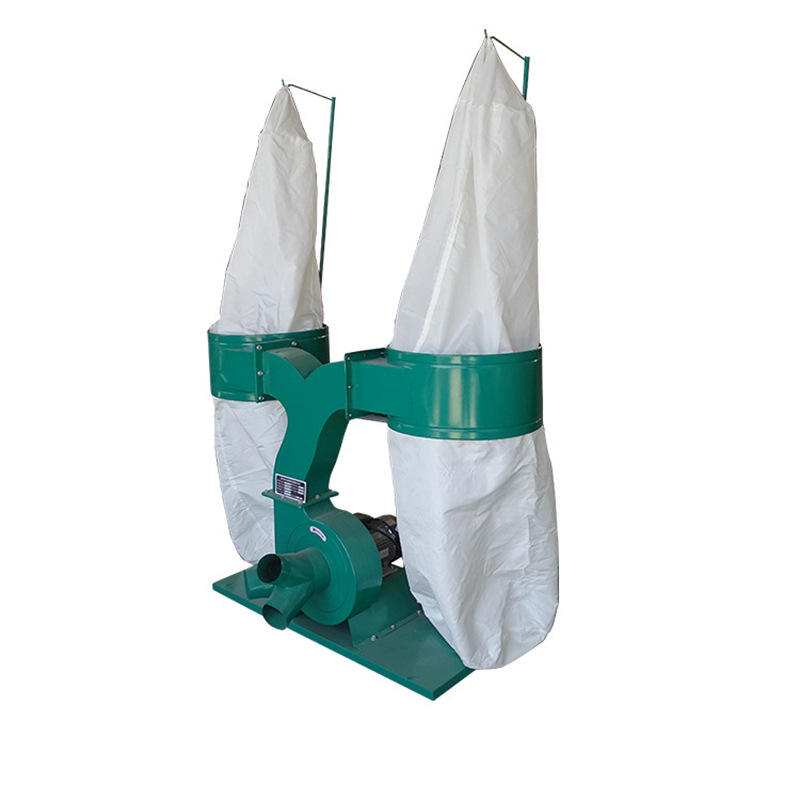

Y-shaped air duct facilitates air intake
Pure copper motor, low energy consumption and strong suction
Multiple air inlets
