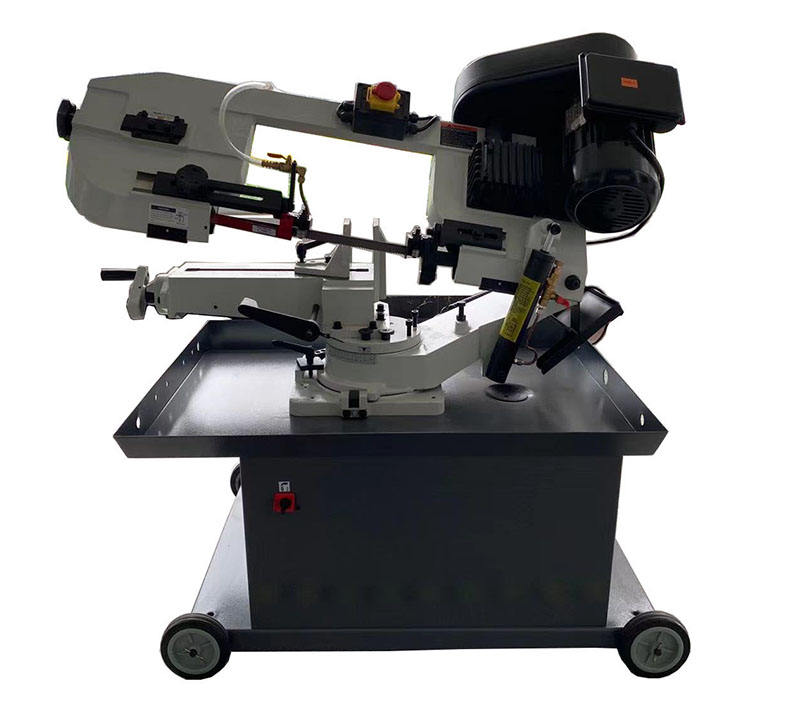

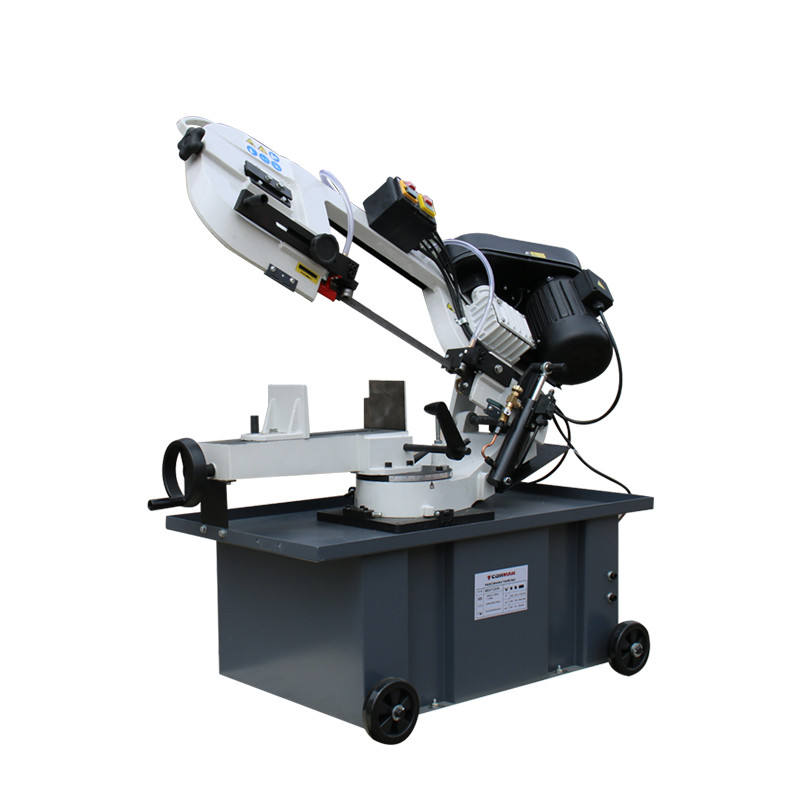

TTMC Horizontal and Vertical Band Saw Miter Band Saw Machine
Briefing
The product is a BS-712R TTMC Horizontal and Vertical Band Saw Miter Band Saw Machine. This machine is designed for efficient and precise cutting of metal using a horizontal and vertical band saw mechanism.
Key Specifications
- Type: Horizontal and Vertical Band Saw
- Material: Steel
- Operation: Automatic
- Power: 750W (1HP) for 3-phase, 1.1KW (1.5HP) for single-phase
- Voltage: 220V/380V
- Cutting Capacity:
- Circular @ 90°: 178 mm (7 inches)
- Rectangular @ 90°: 178 x 210 mm (7 x 8.25 inches)
- Circular @ 45°: 127 mm (5 inches)
- Rectangular @ 45°: 85 x 140 mm (3.33 x 5.5 inches)
- Blade Speed:
- @60Hz: 27, 41, 59, 78 MPM
- @50Hz: 22, 34, 49, 64 MPM
- Blade Size: 20 x 0.9 x 2362 mm
- Weight: Approximately 185 kg (Net), 238 kg (Gross)
- Dimensions: 1290 x 730 x 1150 mm
- Control: Electric with belt drive
Applications
- Metalworking: Ideal for cutting metal in various metalworking projects.
- Industrial Workshops: Suitable for use in industrial workshops for high-efficiency metal cutting.
- Customizable: Can be customized for different sizes and specifications.
Summary
This BS-712R TTMC horizontal and vertical band saw miter band saw machine offers a powerful and efficient solution for cutting metal. It is designed for automatic operation with a high-precision control system, making it suitable for use in various industries such as metalworking and industrial workshops. The machine is customizable in terms of size and specifications, providing flexibility for different projects. Its durable construction and advanced control features ensure reliable performance.
Product descriptions from the supplier
BS-712R TTMC Horizontal and Vertical Band Saw Miter Band Saw Machine
1. Maximum capability 7″
2. The belt gear of it has four cutting speeds

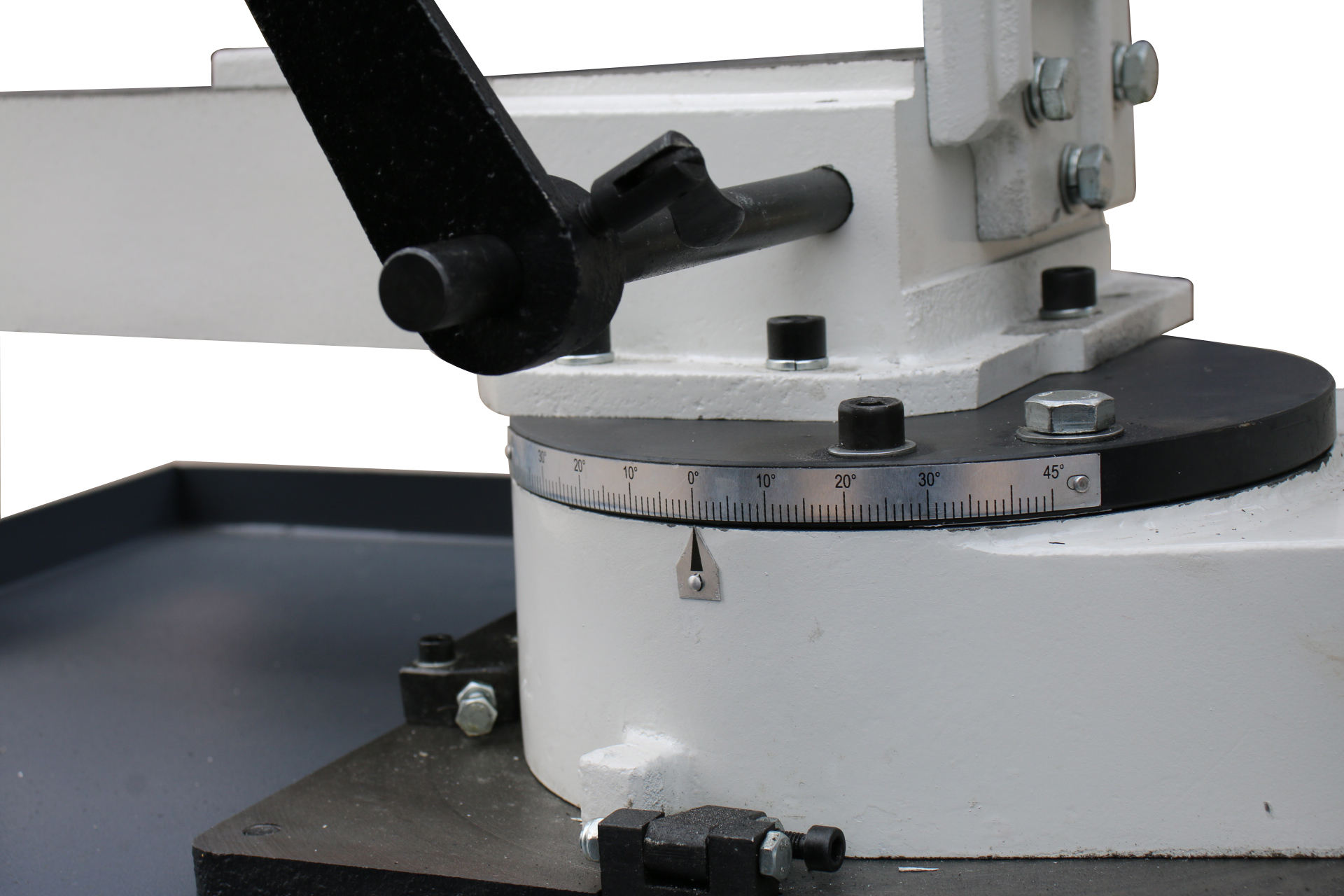

3. The quick clamps can be rotated from 0° to 45°
4. Can be used both vertically and horizontally
5. High-capacity due to controlled by motor
6. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
7. Has a sizing device (the machine will automatically stop after sawing materials)
8. With power break protection device, machine will power off automatically when the rear protective cover is opened
7. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Equipped with a block feeder (with fixed sawing length)
