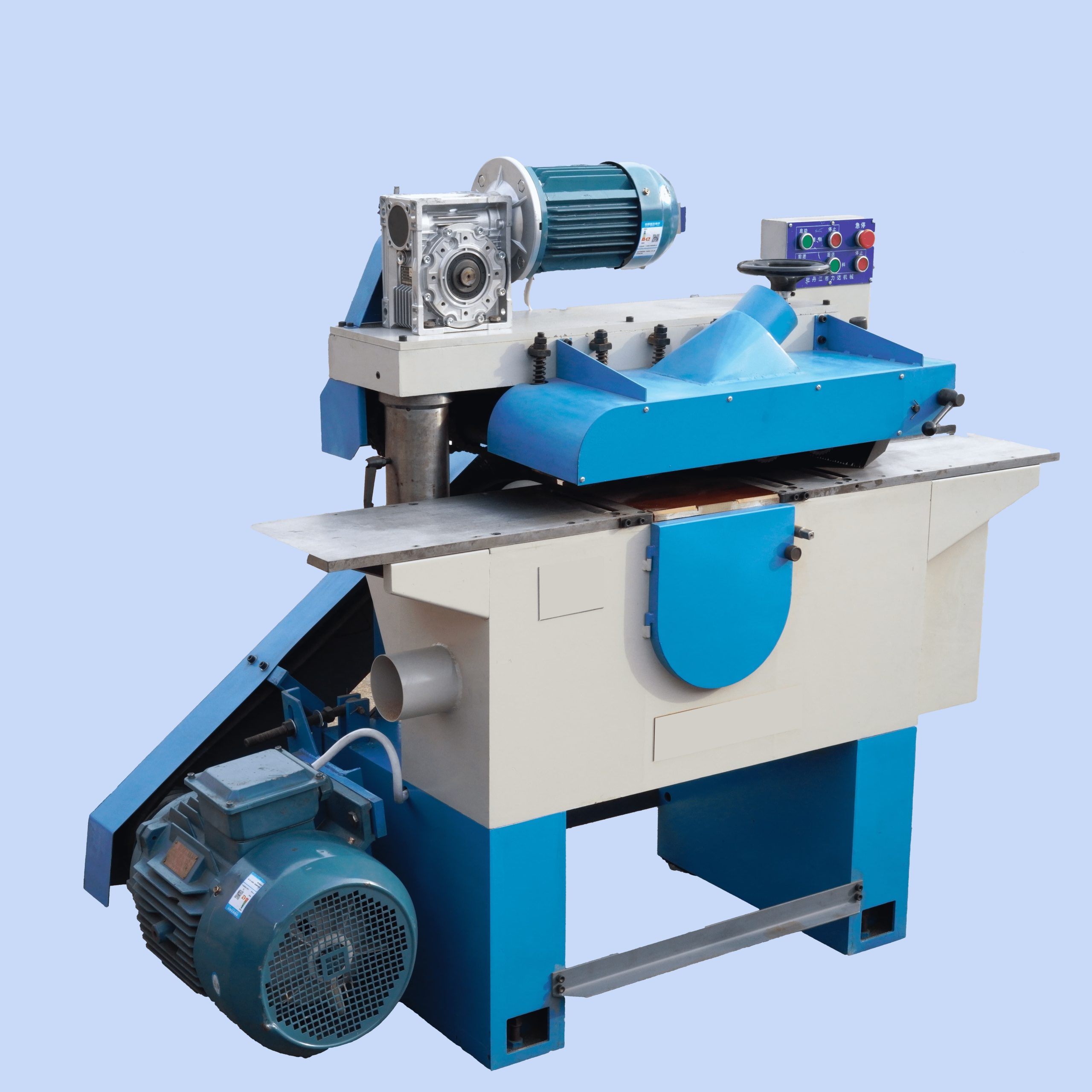

High Efficiency Wood Multi Blade Ripsaw Machine for Square Timber
Briefing
The product is a High-Efficiency Wood Multi-Blade Ripsaw. This machine is designed for efficient and precise cutting of wood using multiple blades.
Key Specifications
- Type: Multi-Blade Ripsaw
- Material: Steel
- Operation: Automatic
- Power: 22 kW (main motor)
- Voltage: 380V/50Hz
- Cutting Depth: 450-4000 mm
- Rotary Speed: 3800 RPM
- Weight: Approximately 1700 kg
- Dimensions: 3340 x 950 x 1400 mm
- Control: Electric
Applications

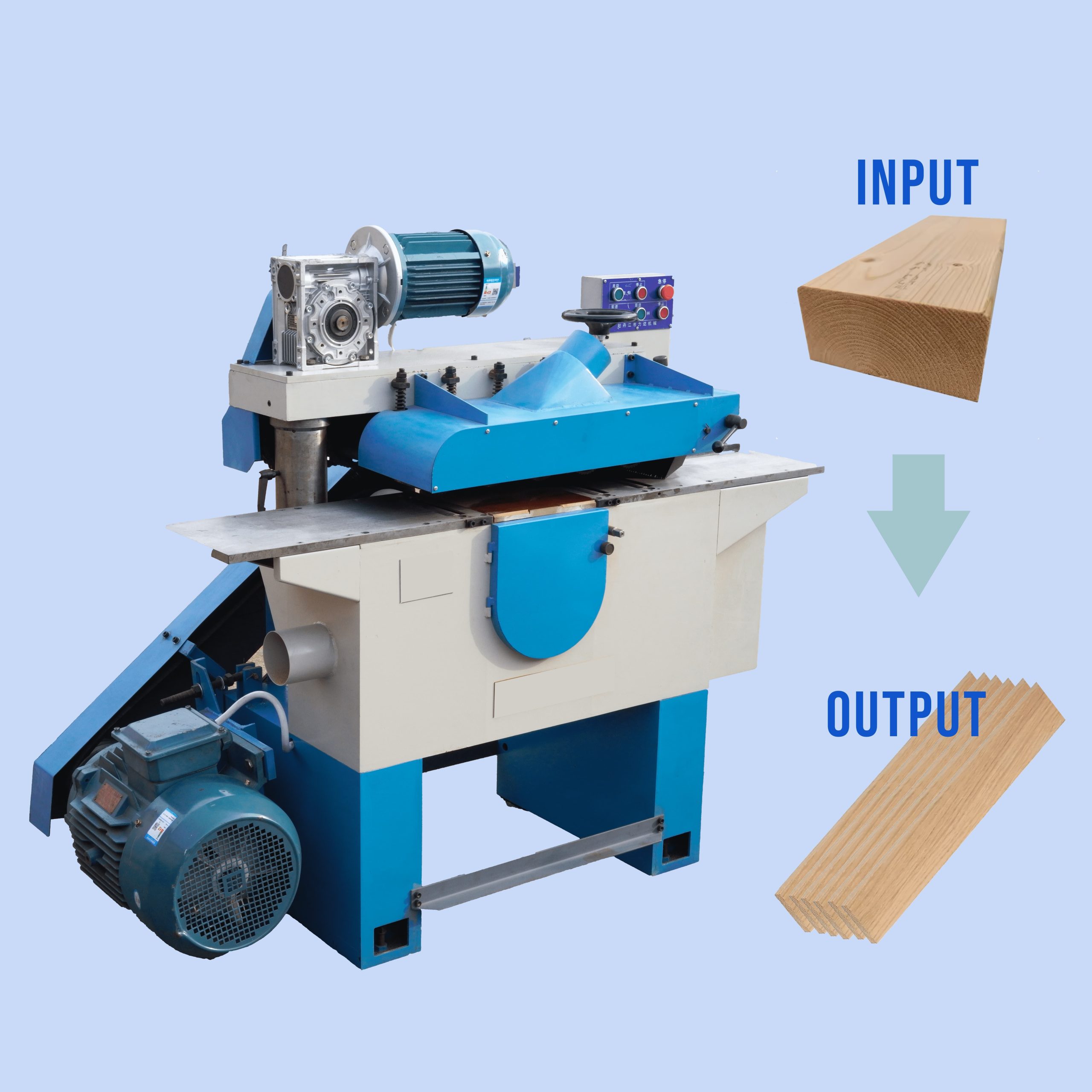

- Wood Processing: Ideal for cutting logs and producing wooden workpieces of exact widths, lengths, and depths.
- Sawmills: Suitable for use in sawmills for high-efficiency wood processing.
- Customizable: Can be customized for different sizes and specifications.
Summary
This high-efficiency wood multi-blade ripsaw offers a powerful and efficient solution for cutting wood. It is designed for automatic operation with multiple blades, making it suitable for use in various wood processing and sawmill applications. The machine is customizable in terms of size and specifications, providing flexibility for different projects. Its durable construction and advanced control features ensure reliable performance.
|
type
|
multi blade circular saw
|
|
voltage
|
380V
|
|
warranty
|
1 Year
|
|
weight (kg)
|
560 KG
|
|
power (kw)
|
12.5kw
|
|
core components
|
PLC, Engine, motor
|
|
use
|
Woodworking
|
|
style
|
VERTICAL
|
|
place of origin
|
Heilongjiang, China
|
|
brand name
|
HLJ Zeta
|
|
dimension(l*w*h)
|
1750*800*1400mm
|
|
key selling points
|
Cost-effective, High efficiency and high accuracy
|
|
video outgoing-inspection
|
Provided
|
|
machinery test report
|
Provided
|
|
cutting length
|
≥120mm
|
|
Max cutting thickness
|
65mm
|
|
Max cutting width
|
180mm
|
|
Circular saw diameter
|
230mm
|
|
Material feed speed
|
4-15m/min
|
|
Production efficiency
|
6-10 m³/person/day
|
|
Rotation speed
|
4500r/min
|
▪️ Processing Range: Processes wooden boards with a minimum length of 120mm (≥120mm).
▪️ High Speed and Smooth Finish: The saw spindle operates at a high speed of up to 4500 RPM (revolutions per minute), ensuring a smooth cutting surface and consistent processing quality.

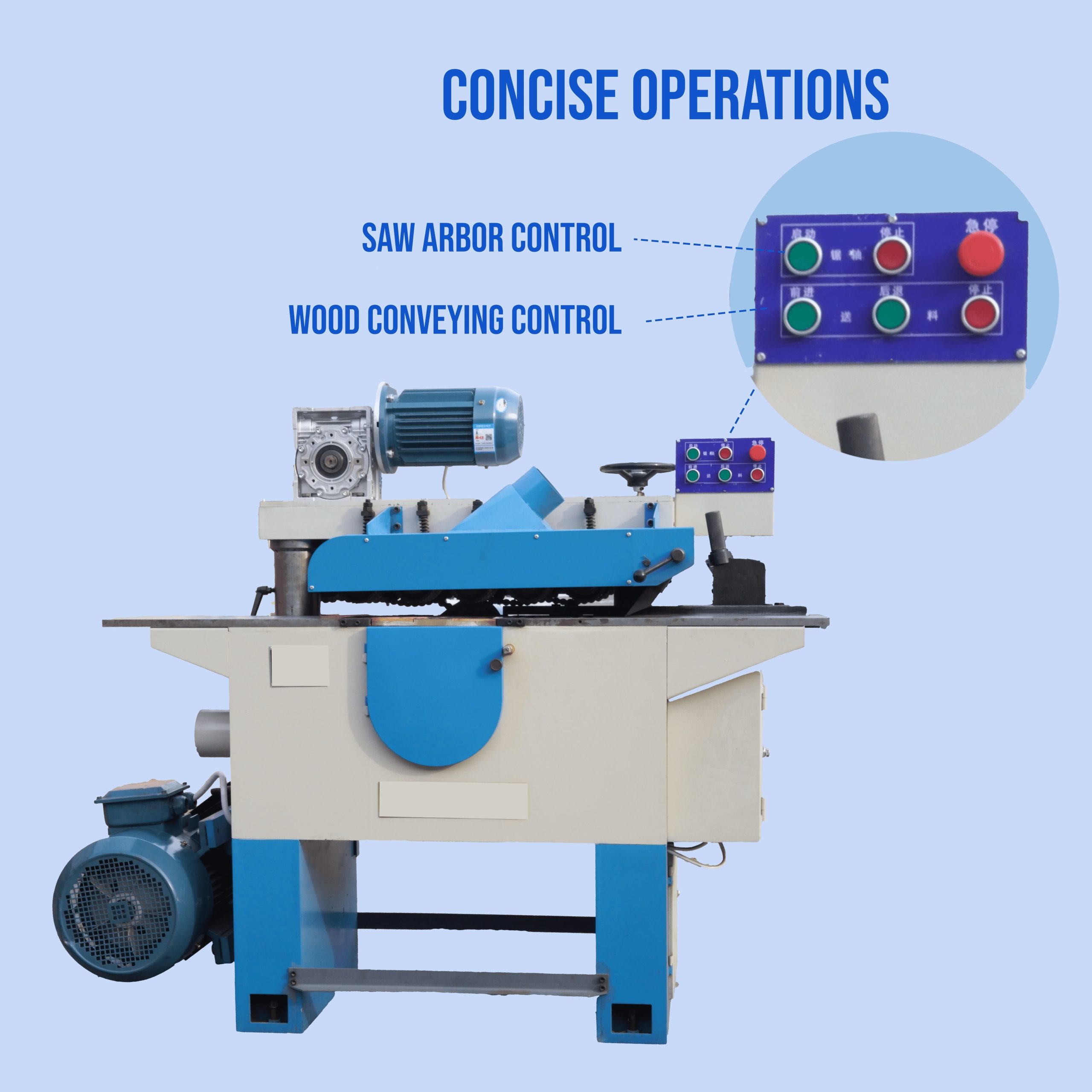

▪️ Simple and Safe Operation: Designed for easy and convenient operation, with reliable safety features. A kickback prevention device is integrated at the infeed to protect operators from material kickback.
▪️ High User Satisfaction: Widely recognized and praised by users.
▪️ Enhanced Features of the LDDJ180Q-A Model:
1. Increased main motor power.
2. Added variable frequency drive (VFD) for adjustable feed speed to accommodate different board materials.
3.Increased processing thickness capacity up to 65mm, expanding the processing range.
