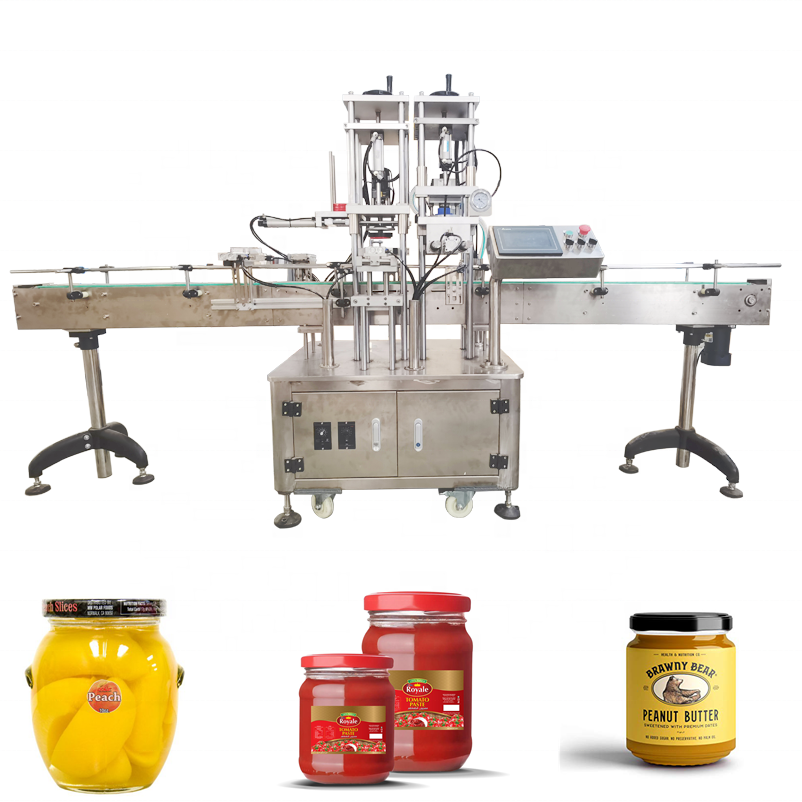

Name: Automatic Glass Jar Vacuum Sealing Machine
SKU: GTM-6VNJL
Availability: InStock

Automatic Glass Jar Vacuum Sealing Machine

R379,499,00 Inc Vat

Would you like to know more details of the machine, please feel free to contact us.

Secured Payments With Paygate

Note: Prices are Inc VAT, Landed Price Ex-Works Midrand, Deliver Nationwide At A Cost

Quality Check: This product has passed all the required quality check.

Important Notice: Delivery is estimated to take up to 60 days, please contact our sale support. View Our Shipping Policy

Disclaimer: Information on this website is provided in good faith and for general guidance. While Global Trade Mart aims to ensure accuracy, we accept no liability for any errors, omissions, or changes made without notice.

Automatic Glass Jar Vacuum Sealing Machine

Key attributes

Industry-specific attributes

Packaging Type – Bottles

Packaging Material – Glass

Driven Type – Electric

Voltage – 110v,220v,380V

Other attributes

Max Speed – 25pcs/min, 40pcs/min, 60pcs/min, 90pcs/min

Application – Food, Beverage, Commodity

Automatic grade – Automatic

Warranty – 1 Year

Dimension(l*w*h) – 2000*1500*1600mm

Key selling points – Easy to Operate

Machinery test report – Provided

Video outgoing-inspection – Provided

Core components – Other, PLC, Gear, Gearbox, motor, Bearing, Engine, Pressure vessel

Applicable lid diameter – 30-70mm

Name – Vacuum capping machine

Sealing speed – 800~1000bph

Bottle type – Round Bottle Jars Cans

Material – SUS304/316

Product name – Auto vacuum jar can sealing machine

Keyword – Glass Bottle Capping Machine

Features of the vacuum capping machine:

1. Vacuum chamber structure can effectively achieve perfect sealing without vacuum leakage, low power vacuum pump configuration can achieve very good vacuum effect.

2. The vacuum value signal control is adopted to realize the vacuum detection of each bottle before the lid is screwed. The capping and screw-capping action can only be carried out after the vacuum value is set to ensure that each bottle reaches the set vacuum degree when the lid is screwed

3. It adopts the structure of drum-type vacuum cover, and realizes automatic inlet and outlet of bottle, automatic lid matching, vacuum pumping, clamping bottle body, cap turning and other actions through PLC (programmable controller) programming without manual intervention.

4. Equipped with vacuum protection function, less broken and broken bottles.

Specification

No.	Item	Parameters
1	Model	GFLGYT-1
2	No. of sealing heads	1
3	Sealing speed	700~1000bph
6	Applicable bottle diameter	f40-95mm
7	Adaptive cap diameter	f30-70mm
8	Weight	400Kg
9	Dimensions	200015001600mm
10	Voltage	220V,380V or as customized
