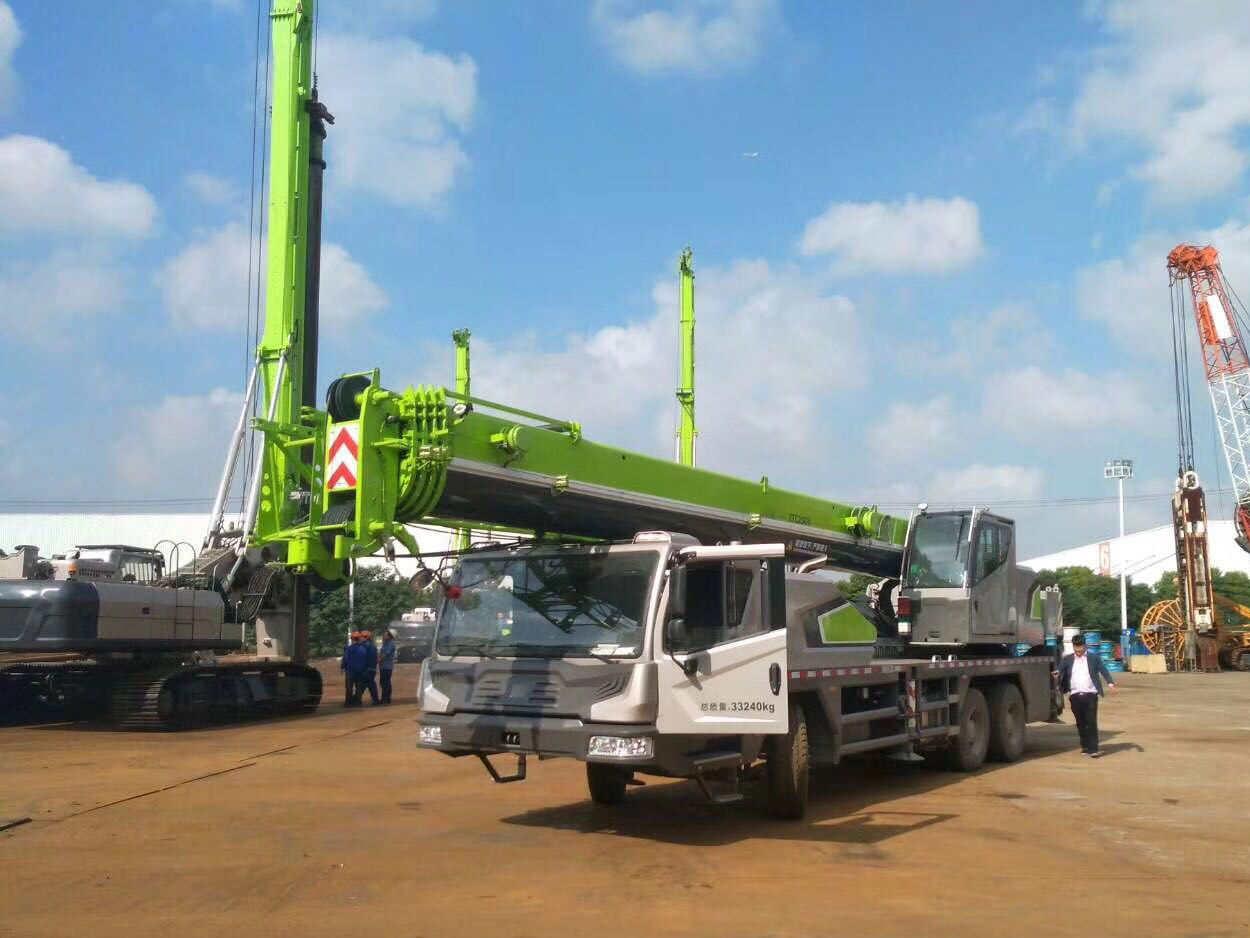

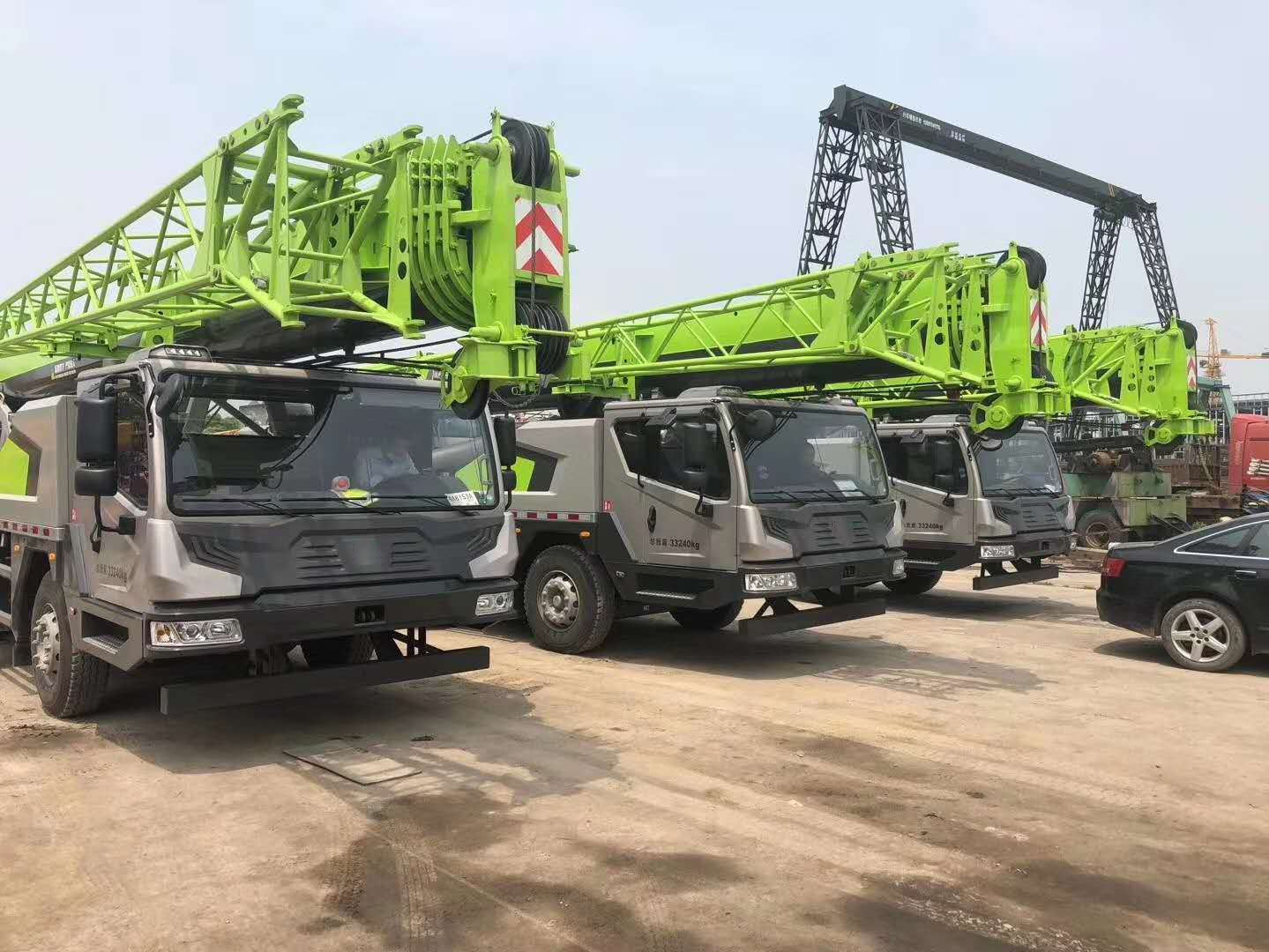

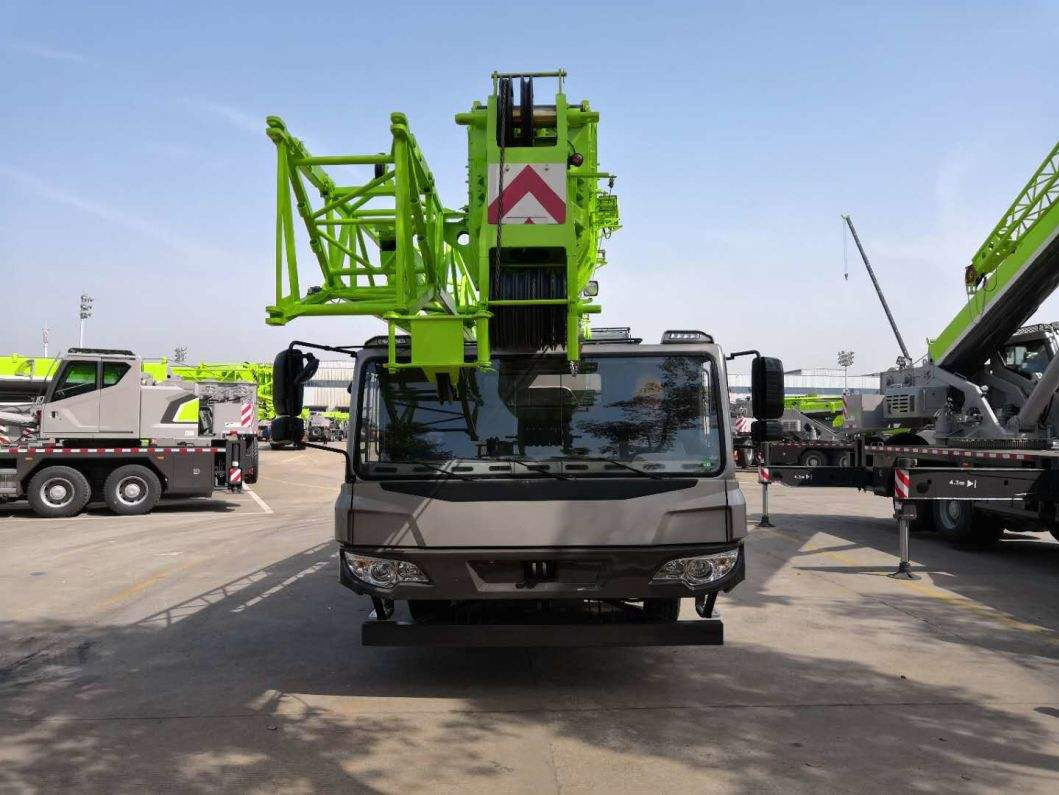

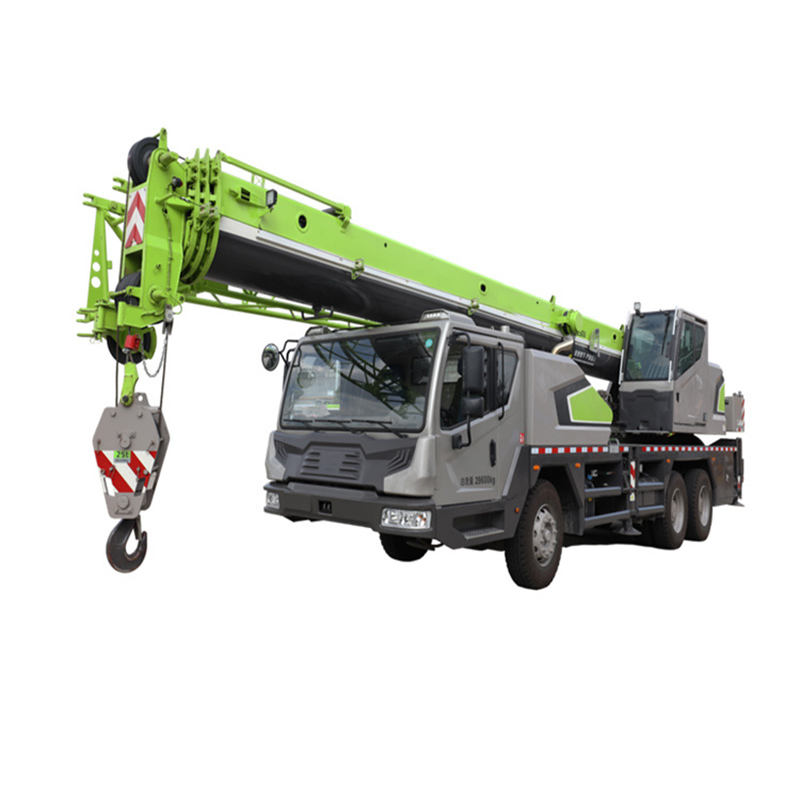

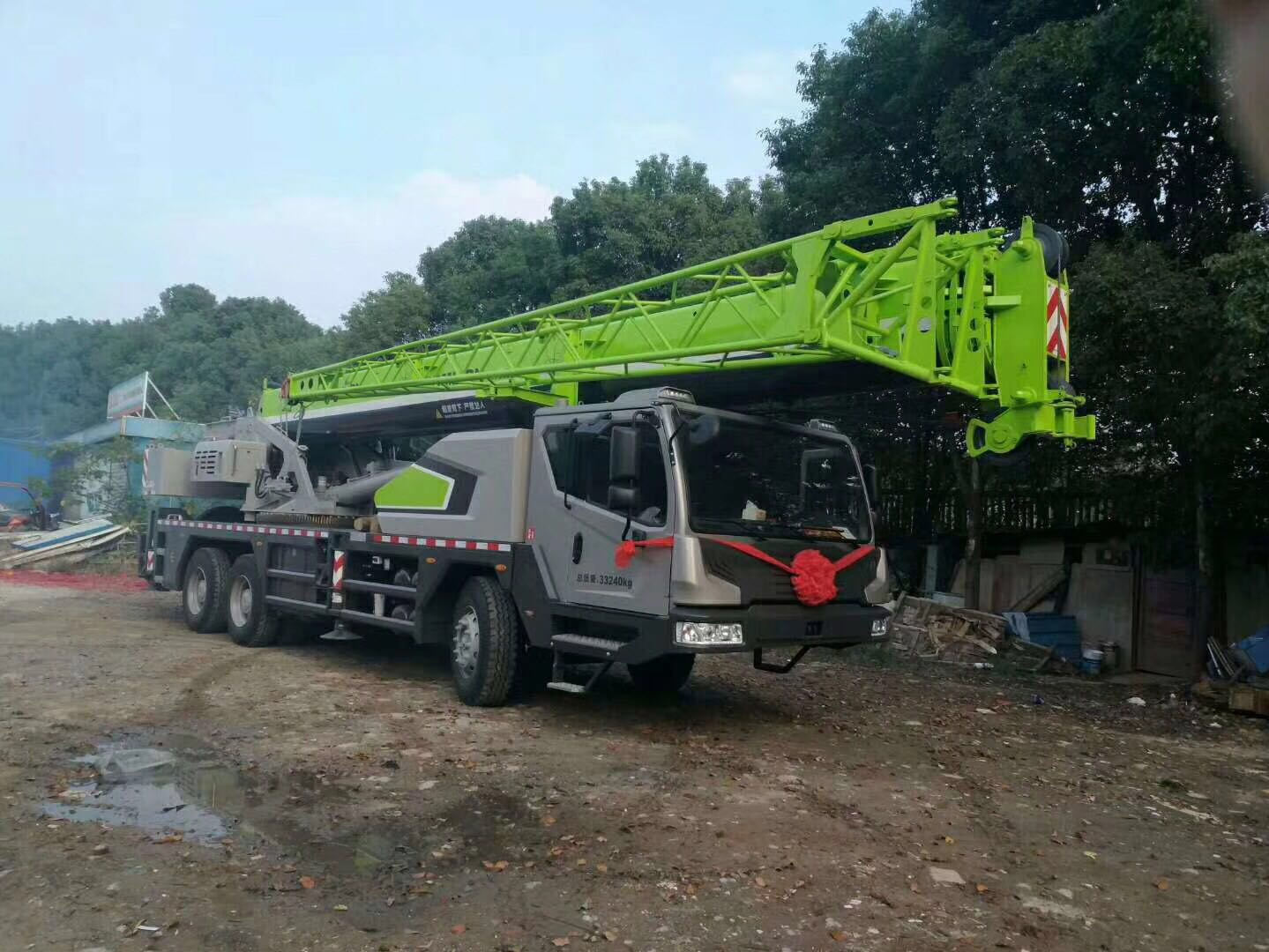

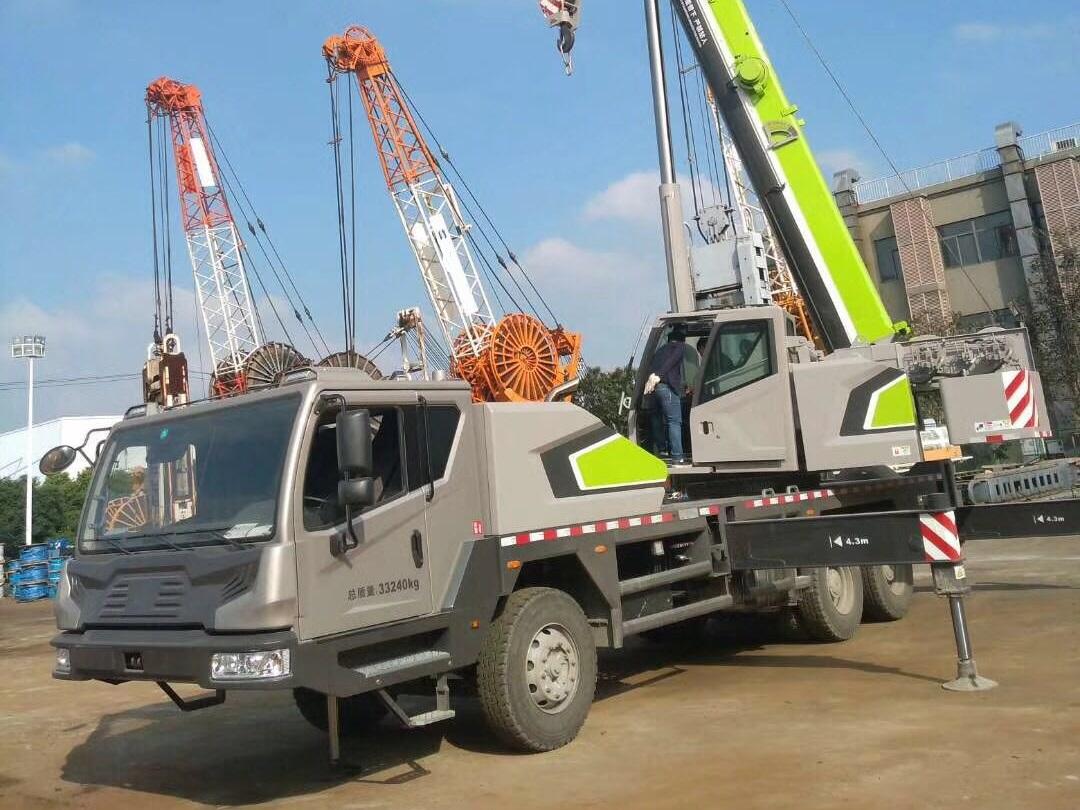

30 Ton Four-Boom Mobile Crane Truck
PRODUCT SPECIFICATIONS
|
Item
|
Unit
|
Value
|
|
|
Working performance
|
Max. rated lifting capacity
|
kg
|
30000
|
|
Max. load moment of basic boom
|
kN. m
|
990
|
|
|
Max. load moment of main boom(fully extended)
|
kN. m
|
624
|
|
|
Max. lifting height of main boom
|
m
|
42.1
|
|
|
Max. lifting height of jib
|
m
|
50
|
|
|
Working speeds
|
Max. hoist rope speed(Main winch)
|
m/min
|
120
|
|
Max. hoist rope speed(Auxiliary winch)
|
m/min
|
120
|
|
|
Boom derricking up time
|
s
|
25
|
|
|
Boom telescoping out time
|
s
|
84
|
|
|
Slewing speed
|
r/min
|
0 – 2.7
|
|
|
Driving parameters
|
Max. driving speed
|
km/h
|
90
|
|
Max. gradeability
|
%
|
42
|
|
|
Min turning diameter
|
m
|
≤20
|
|
|
Min. ground clearance
|
mm
|
260
|
|
|
Oil consumption per hundred kilometers
|
L
|
28
|
|
|
Mass
|
Deadweight in driving condition
|
kg
|
32510
|
|
Complete vehicle kerb mass
|
kg
|
32389
|
|
|
Front axle load
|
kg
|
6610
|
|
|
Rear axle load
|
kg
|
25900
|
|
|
Dimensions
|
Overall dimensions(L×W×H)
|
mm
|
13150×2500×3450
|
|
Longitudinal distance between outriggers
|
m
|
5.4
|
|
|
Transversal distance between outriggers
|
m
|
Fully extended: 6.20m Intermediately extended: 4.25m
|
|
|
Tail slewing radius
|
mm
|
3265
|
|
|
Main boom length
|
m
|
10.7 – 42.0
|
|
|
Boom angle
|
°
|
-82
|
|
|
jib length
|
m
|
8
|
|
|
Offset
|
°
|
0/15/30
|
|
Key attributes
Industry-specific attributes
Rated Lifting Moment – 1175kN.m
Max. Lifting Height – 43 m
Brand Name – Chinese Brand
Engine Brand + Famous brands optional
Other attributes
Rated Loading Capacity – 30 Ton
Warranty – 1 Year
Hydraulic Cylinder Brand – Chinese Brand
Hydraulic Pump Brand – Chinese Brand
Hydraulic Valve Brand – Chinese Brand
Core Components
Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG) – 32000 kg
Application – Lifting machinery
UNIQUE SELLING POINT – High operating efficiency
Machinery Test Report – Provided
Video outgoing-inspection – Provided
Product name – Chinese Truck Crane
Rated Loading Capacity – 30 ton
Crane type – Truck Crane Mobile Crane Hydraulic Crane
Type – Heavy Truck Crane
Capacity – 30T
Color – Customer Requirements
Max. Lifting Height – 43m
Keyword – 30 Ton Hydraulic Truck Crane
Model Number – ZTC300V462
Engine – Weichai
Packaging and delivery
Packaging Details
Nude packing by Container or RORO vessel
Selling Units: – Single item
Single package size: – 146X280X380 cm
Single gross weight: – 33000.000 kg
